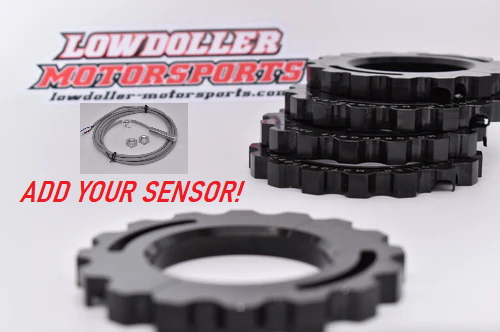

Looking for an affordable replacement driveshaft speed sensor? Tired of setting gaps only to find it still isn’t reading properly?   Well, here’s the solution!

• built in LED indicator light for setup
• Triggered by ferrous material (Not magnets)
• 3/8” 24, 5/16" X 24, & M12 BODIES
• Stainless steel body
• Detection range 0.1MM to 1MM
• Flush mount
• Supply voltage 10V-30V
• Short circuited/reverse protection built in.
• Working temperature -13F to 176F
• IP67 rated (water proof)
• Normally open signal
• Max switching frequency 8,000HZ

wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire  (Outputs 0V) to data logger.

*LDM-MAG-HALL-5/16 Triggered by magnets (Not ferrous material)*
